Connection Examples

Ground Stations

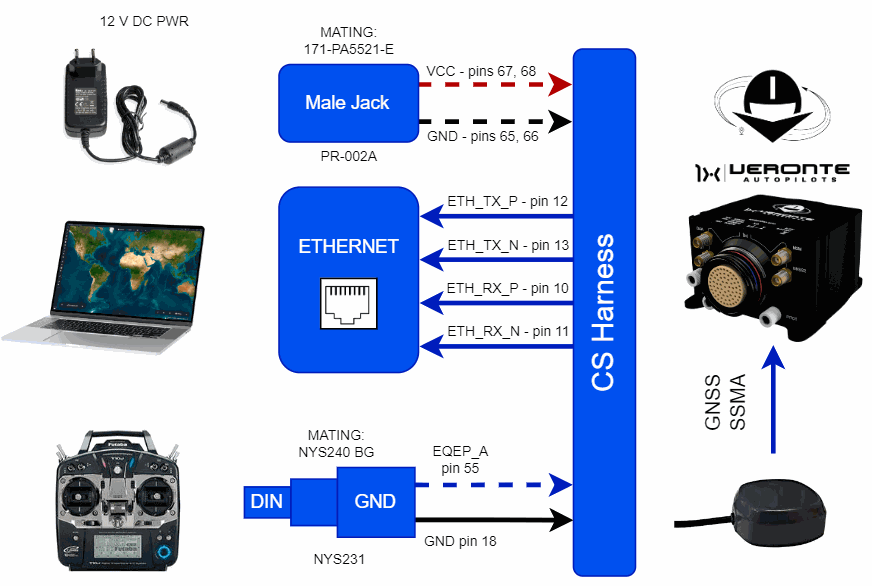

Basic Autopilot 1x Ground Station

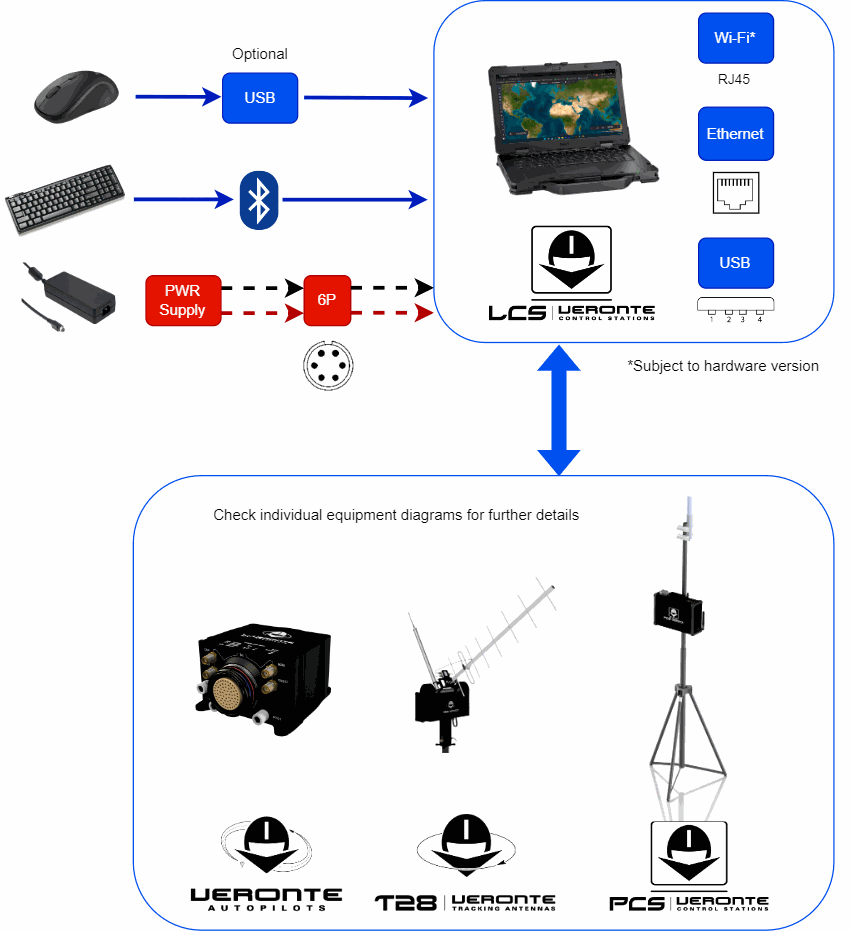

Autopilot 1x LCS Ground Station

Warning

Veronte Autopilot 1x equipment harnesses have specific pin layouts. Only use their own matting connectors, do NOT mix harnesses: misuse can lead to destruction.

Aircrafts

Multicopter

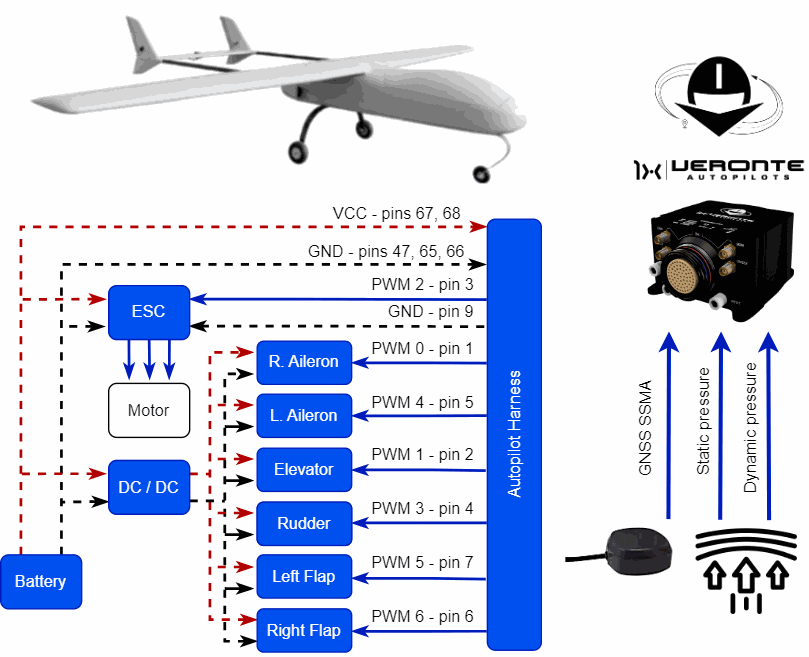

Fixed Wing Airplane

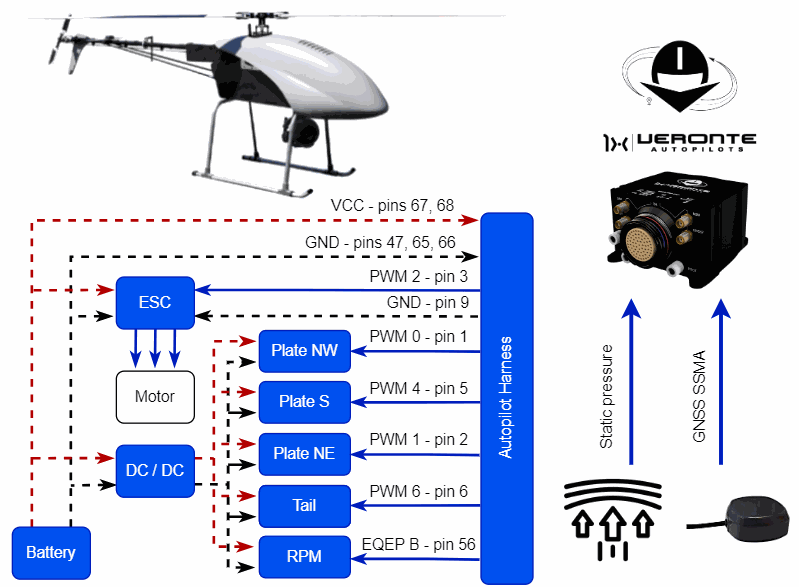

Helicopter
